BMW Z4 (2006-2009) Suspension Bushings

Powerflex's special polyurethane is an advanced material with unique properties. Upgrade your BMW ~ Z4 (06-09) with high performance bushings, bushings that won't cause vibration or noise and include a Lifetime Warranty!

BMW Z4

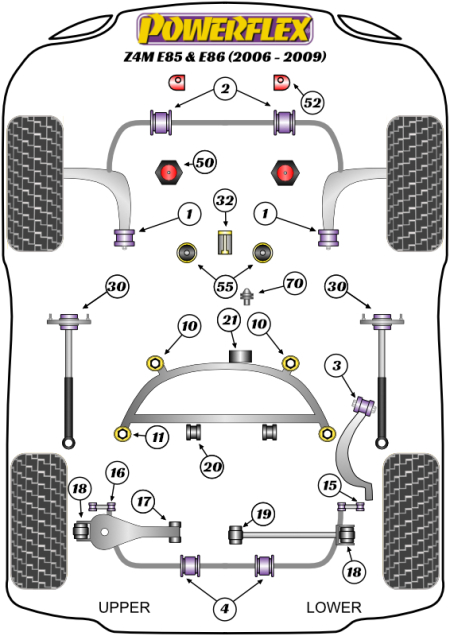

Suspension Diagram

Notes:

  • PFF5-4601 & PFF5-5601 fit brackets with a 66mm bore
  • PFF5-4601-60 & PFF5-5601-60 fit brackets with a 60mm bore , usually found on earlier models.
  • PFF5-5601G & PFF5-5601G-60 give an additional +0.5° Caster (gives standard caster on Z4M)
  • For the Z4M use PFF5-5601G to achieve the standard caster, other front arm bushes will reduce the caster.
  • PFR5-4610 & 4611 are complete replacement bushes, for inserts use PFR5-4613 & 4614 (inserts fit into the voiding of the original bush)
  • PFR5-4621 fits Z4M models only
  • PFR5-4609-22.5 Fits Z4M models only
  • PFR5-5630-10 fits cars with standard or aftermarket rear shock absorber with a 10mm pin, PFR5-5630-12 fits cars with aftermarket rear shock absorbers with a 12mm pin.

BMW / Mini Jack Pad Adapter

19.99 19.990000000000002 USD
  • PF5-4660
  • Floor jack adapter to lift your BMW and MINI safely and securely

BMW E46 / E36 / Z4 / X3 Rear Trailing Arm Front Bushing

93.99 93.99 USD
  • PFR5-3608BLK
  • Diagram Reference #3 or 8

BMW E46 M3 Rear Sway Bar Bushing - 21.5 mm

53.99 53.99 USD
  • PFR5-4609-21.5
  • Diagram Reference #4

BMW E46 M3 / Z4 Rear Sway Bar Bushing - 22.5 mm

65.99 65.99 USD
  • PFR5-4609-22.5
  • Diagram Reference #4

BMW E46 M3 / Z4M Rear Subframe Front Bushing Insert

79.99 79.99 USD
  • PFR5-4612
  • Diagram Reference #10

BMW E46 M3 & 3 Series / Z4 / X3 Rear Subframe Front Bushing

132.99 132.99 USD
  • PFR5-4610
  • Diagram Reference #10

BMW E46 / Z4 / X3 Rear Subframe Rear Bushing

132.99 132.99 USD
  • PFR5-4611
  • Diagram Reference #11

BMW E36 / E30 / E28 / E24 Rear Sway Bar Link to Arm Bushing

46.99 46.99 USD
  • PFR5-315
  • Diagram Reference #15

BMW E36 & E46 3 Series, Z4, X3 Rear Upper Arm Inner Bushing

74.99 74.99 USD
  • PFR5-4617
  • Diagram Reference #17

BMW E36 & E46 3 Series, Z4, X3 Rear Lower Control Arm Inner Bushing

110.99 110.99000000000001 USD
  • PFR5-4616
  • Diagram Reference #19

BMW E46 M3 Rear Diff Rear Mount

136.99 136.99 USD
  • PFR5-4620
  • Diagram Reference #20

BMW E46 3 Series / Z4 Rear Diff Front Mount

39.99 39.99 USD
  • PFR5-4621BLK
  • Diagram Reference #21

BMW E30 / E36 / E46 / Z3 / Z4 Rear Shock Mount - 12 mm

127.99 127.99000000000001 USD
  • PFR5-5630-12
  • Diagram Reference #30

BMW E30 / E36 / E46 / Z3 / Z4 Rear Shock Mount - 10 mm

127.99 127.99000000000001 USD
  • PFR5-5630-10
  • Diagram Reference #30
