Volkswagen Golf Mk5 Incl. GTI/R32 (2003-2009) Suspension Bushings

Powerflex's special polyurethane is an advanced material with unique properties. Upgrade your Volkswagen ~ Golf Mk5 GTI & R32 (2003 - 2009) with high performance bushings, bushings that won't cause vibration or noise and include a Lifetime Warranty!

Volkswagen Golf Mk5 GTI

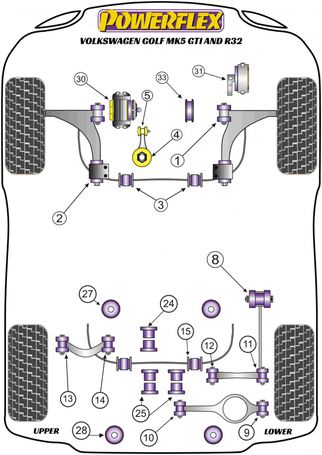

Suspension Diagram


Notes:

  • PFF85-504 fits vehicles up to the middle of 2008
  • PFF85-704 fits vehicles from the middle of 2008+
  • PFF85-504 and PFF85-704 are made in Yellow Shore A 70 and are suitable for fast road applications
  • PFF85-504R and PFF85-704R are made in Red Shore A 65 and are suitable for diesel engines where using the fast road material can cause too much NVH
  • PFF85-504P and PFF85-704P are made in Purple Shore A 80 and are suitable for higher powered engines, track and competition cars; NVH will be more noticeable as the material is stiffer, but allows less movement
  • PFR85-524, PFR85-525, PFR85-527 & PFR85-528 fit 4 wheel drive models only.

VW/Audi Jack Pad Adapter

23.99 23.990000000000002 USD
  • PF3-1661
  • Floor jack adapter to lift your Audi safely and securely

Volkswagen / Audi Front Control Arm Inner Bushing (Front)

65.99 65.99 USD
  • PFF85-501
  • Diagram Reference #1

Volkswagen / Audi Front Control Arm Inner Bushing (Rear)

85.99 85.99 USD
  • PFF85-502
  • Diagram Reference #2

Audi & Volkswagen Front Sway Bar Bushing - 24 mm

47.99 47.99 USD
  • PFF85-503-24
  • Diagram Reference #3

Audi & Volkswagen Front Sway Bar Bushing - 23.6 mm

47.99 47.99 USD
  • PFF85-503-23.6
  • Diagram Reference #3

Audi & Volkswagen Front Sway Bar Bushing - 22.5 mm

47.99 47.99 USD
  • PFF85-503-22.5
  • Diagram Reference #3

Volkswagen / Audi Lower Engine Mount Insert (Large)

34.99 34.99 USD
  • PFF85-704
  • Diagram Reference #4

Volkswagen / Audi Lower Engine Mount Insert (Large)

34.99 34.99 USD
  • PFF85-504
  • Diagram Reference #4

Volkswagen / Audi Lower Engine Mount Insert (Large) Track Use

34.99 34.99 USD
  • PFF85-704P
  • Diagram Reference #4

Volkswagen / Audi Lower Engine Mount Insert (Large) Track Use

34.99 34.99 USD
  • PFF85-504P
  • Diagram Reference #4

Volkswagen / Audi Lower Engine Mount Insert (Large) Diesel

34.99 34.99 USD
  • PFF85-504R
  • Diagram Reference #4

Volkswagen Lower Engine Mount Insert (Large) Diesel

34.99 34.99 USD
  • PFF85-704R
  • Diagram Reference #4

Volkswagen / Audi Engine Mount Dog Bone Small Bushing

31.99 31.990000000000002 USD
  • PFF85-505
  • Diagram Reference #5 or 9

Volkswagen / Audi Rear Tie Bar to Chassis Front Bushing

60.99 60.99 USD
  • PFR85-508
  • Diagram Reference #8

Volkswagen / Audi Rear Lower Spring Mount Outer

52.99 52.99 USD
  • PFR85-509BLK
  • Diagram Reference #9

Volkswagen / Audi Rear Lower Spring Mount Inner

52.99 52.99 USD
  • PFR85-510BLK
  • Diagram Reference #10

Volkswagen / Audi Rear Lower Link Outer Bushing

63.99 63.99 USD
  • PFR85-511BLK
  • Diagram Reference #11

Volkswagen / Audi Rear Lower Link Inner Bushing

63.99 63.99 USD
  • PFR85-512BLK
  • Diagram Reference #12

Volkswagen / Audi Rear Upper Link Outer Bushing

52.99 52.99 USD
  • PFR85-513
  • Diagram Reference #13

Audi / Volkswagen Rear Upper Link Inner Bushing

52.99 52.99 USD
  • PFR85-514
  • Diagram Reference #14

Volkwagen / Audi Rear Sway Bar Bushing - 21.7 mm

51.99 51.99 USD
  • PFR85-515-21.7
  • Diagram Reference #15

Audi & Volkswagen Rear Sway Bar Bushing - 20.7 mm

51.99 51.99 USD
  • PFR85-515-20.7
  • Diagram Reference #15

Audi & Volkswagen Rear Sway Bar Bushing - 20.5 mm

51.99 51.99 USD
  • PFR85-515-20.5
  • Diagram Reference #15

Audi & Volkswagen Rear Sway Bar Bushing - 19.6 mm

51.99 51.99 USD
  • PFR85-515-19.6
  • Diagram Reference #15

Audi & Volkswagen Rear Sway Bar Bushing - 18.5 mm

51.99 51.99 USD
  • PFR85-515-18.5
  • Diagram Reference #15

Volkswagen / Audi Rear Diff Front Mounting Bushing

43.99 43.99 USD
  • PFR85-524
  • Diagram Reference #24

Volkswagen / Audi Rear Diff Rear Mounting Bushing

82.99 82.99 USD
  • PFR85-525
  • Diagram Reference #25

Volkswagen / Audi Rear Subframe Front Mounting Bushing

117.99 117.99000000000001 USD
  • PFR85-527
  • Diagram Reference #27

Volkswagen / Audi Rear Subframe Rear Mounting Bushing

117.99 117.99000000000001 USD
  • PFR85-528
  • Diagram Reference #28

VW/Audi Transmission Mount Insert (1K0199555)

45.99 45.99 USD
  • PFF85-530
  • Diagram Reference #30

Audi A3, TT / VW Golf 5/6, Passat Upper Engine Mount Inserts

45.99 45.99 USD
  • PFF85-532
  • Diagram reference #31

VW/Audi Upper Engine Mount Insert (1K0199262)

45.99 45.99 USD
  • PFF85-531
  • Diagram Reference #31
