Nissan Juke Front Control Arm Rear Bushings

Diagram Reference #2
  • Type

98.99 98.99 98.99000000000001 USD


This combination does not exist.

Add to Cart

Stock rubber control arm bushings give a disconnected and mushy feel to the front suspension, especially when worn, as the bushing deflects more than it should. You get sloppy steering, vibrations, and poor handling which makes the car feel unstable. These urethane bushings are stiffer than stock rubber and will not deflect as much. This helps keep the alignment in check with less variation. The car feels more planted and confidence-inspiring. And a lifetime warranty means you'll likely never have to pay for another bushing ever again!

This bushing set is available in black series for all uses; street, performance and race.

Includes a pair of bushings for the rear of the left front and right front control arms.

This part replaces OEM Part Numbers: 54500-BB00A,54501JY00A

Installation Instructions Link

Fitting Instructions

1. Remove the original rubber bush from the front

control arm.

2. Clean any dirt and corrosion from the bore of the

arm, and file off any sharp edges.

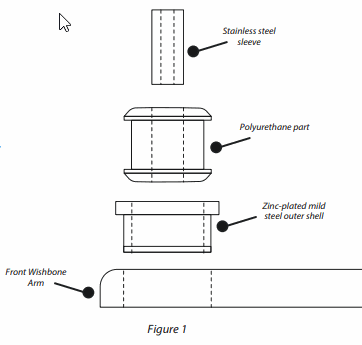

3. Push the outer shell into the bore of the arm, smaller

diameter first. The shell fits into the arm from the side

of the arm that has a radius, as shown in figure 1.

4. Push the polyurethane part into the bore of the outer

shell. TIP: Apply some washing up liquid around the

polyurethane part to aid in fitting.

5. Apply some of the supplied grease to the bore of the

polyurethane part and push the stainless steel sleeve

into the bore so it sits flush inside the bushing.

6. Tension all hardware to manufacturers

recommended torque settings.

Odoo text and image block
OE / OEM Cross Reference Numbers: 54500-BB00A / 54501JY00A
This parts fits the following models.

Ask A Question   (Please reference part number in subject line)
